5V2A Socket Power Charger (Singal US Socket)

SINGAL SOCKET POWER CHARGER / AC-DC

100~240VAC 0.8A Max, 47~63Hz, 5VDC 2A YH-J050020-A


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
10
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
-20
…+85

Start Inrush Current:
50A/240V

Insulation Intensity
3000VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

SINGAL SOCKET POWER CHARGER
YH-J050020-A

The YH-J050020-A is a powerful adapter designed for applications, such as home electronic equipment electric tools, security & protection, Medical Equipment, office equipment, is easy to handle and provides the safest and cleanest DC power energy.

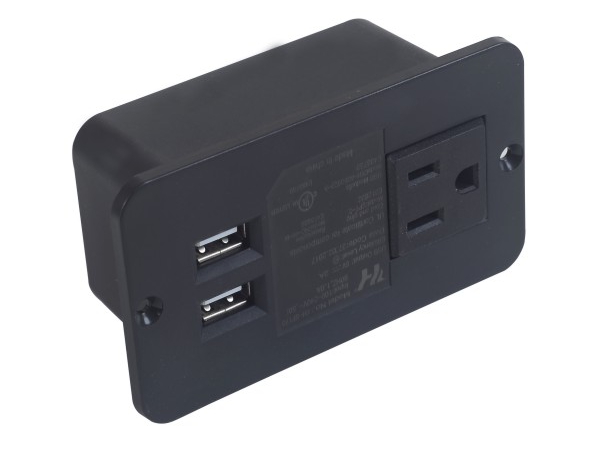

The adapter YH-J050020-A comes with a 3-prong sockets and two USB sockets.

Note: The sockets compatible for different countries or regions are customizable.
