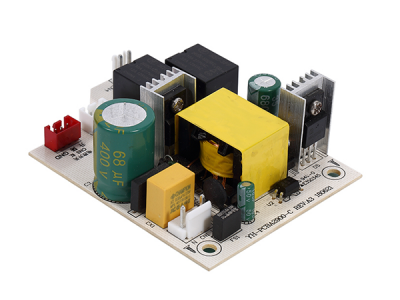

120W Open Frame

120W OPEN FRAME / AC-DC

100~240VAC 2.5A Max, 47~63HzYH120W-B-VI


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
  0
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
  -20
…+85

Start Inrush Current:
80A/240V

Insulation Intensity
3750VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

120W OPEN FRAME
YH120W-B-VI

The YH120W-B-VI is a powerful open frame designed for applications, such as home electronic equipment (e.g. electric recliners, massage chair, lifting desk) electric tools, security & protection, Medical Equipment, telecom&networking, office equipment provides the safest and cleanest DC power energy.

Model
Voltage
Current
Efficiency
Power
YHXXXW-B-VI
XXX=60-120
Vdc
A
Min./%
Max.(W)
24
4
87
96
29
4
87
116
