60W Open Frame(D)

60W OPEN FRAME / AC-DC

100~240VAC 1.6A Max, 47~63Hz YH60W-D-VI


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
  0
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
  -20
…+85

Start Inrush Current:
80A/240V

Insulation Intensity
3750VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

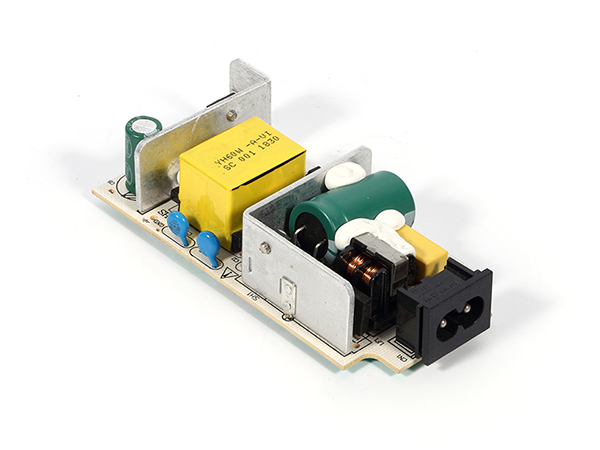

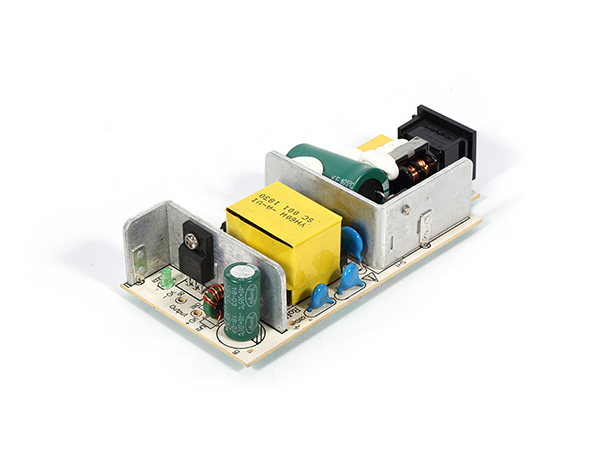

60W OPEN FRAME
YH60W-D-VI

The YH60W-D-VI is a powerful open frame designed for applications, such as home electronic equipment (e.g. electric recliners, massage chair, lifting desk) electric tools, security & protection, Medical Equipment, telecom&networking, office equipment, provides the safest and cleanest DC power energy.

Model
Voltage
Current
Efficiency
Power
YHXXXW-D-VI
XXX=048-060
Vdc
A
Min./%
Max.(W)
12
4
80
48
18
3
84
54
24
2
84
48
29
2
86
58
35
1.5
86
52.5
