48W Wall Mount SMPS / AC-DC
|
Technical
Parameters
|
Environmental
Parameters
|
|
Environmental |
Operating Temperature: |
|
Input Voltage |
Storage Temperature: |
|
Start Inrush Current: |
Insulation Intensity： |
|
Regulation: |
Insulation Resistance: |
|
Ripple and Noise: |
Over Current Protection: |
|
Turn-on Delay |
Over Voltage Protection: |

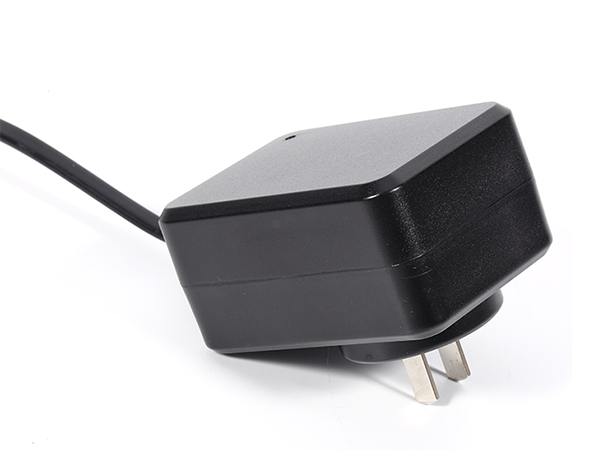

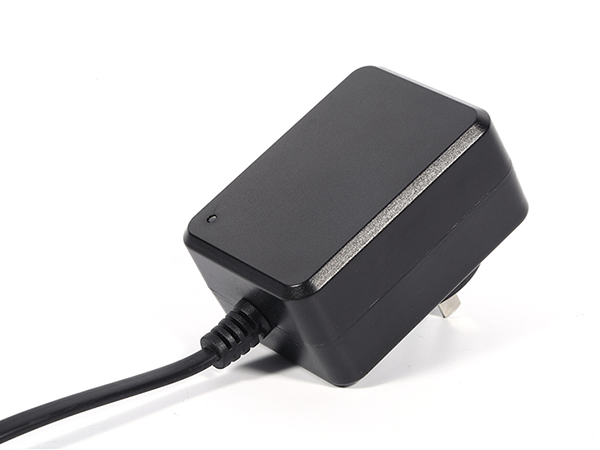

The YH-X240020-A is a powerful adapter designed for applications, such as home electronic equipment (e.g. electric recliners, massage chair, lifting desk) electric tools, security & protection, Medical Equipment, telecom&networking, office equipment, is easy to handle and provides the safest and cleanest DC power energy, and has a very robust construction thanks to the ultrasonic welded plastic housing.
The adapter YH-X240020-A comes with electrical outlet plug compatible with the Mains socket and a DC cord with the connector.
Note: The plugs compatible for different countries or regions are customizable.
|
Model
|
Voltage
|
Current
|
Efficiency
|
Power
|
|
YH-XZZZYYY-A
ZZZ=090-350
YYY=010-030
|
Vdc
|
A
|
Min./%
|
Max.(W)
|
|
12
|
3
|
80
|
36
|
|
|
15
|
2.5
|
82
|
37.5
|
|
|
24
|
2
|
84
|
48
|
|
|
29
|
1.5
|
85
|
43.5
|
|
