29V2A Wall Mount Power Supply / Adapter

60W Wall Mount SMPS / AC-DC

100~240VAC 1.6A Max, 47~63Hz, 29VDC 2A YH-K290020-C


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
  0
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
  -20
…+85

Start Inrush Current:
80A/240V

Insulation Intensity
3750VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

60W SMPS
YH-K290020-C

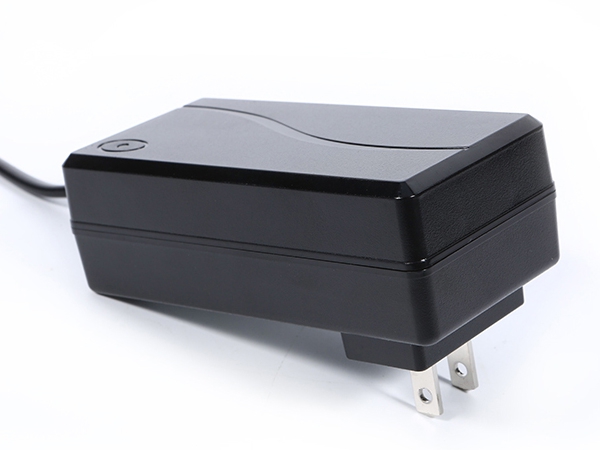

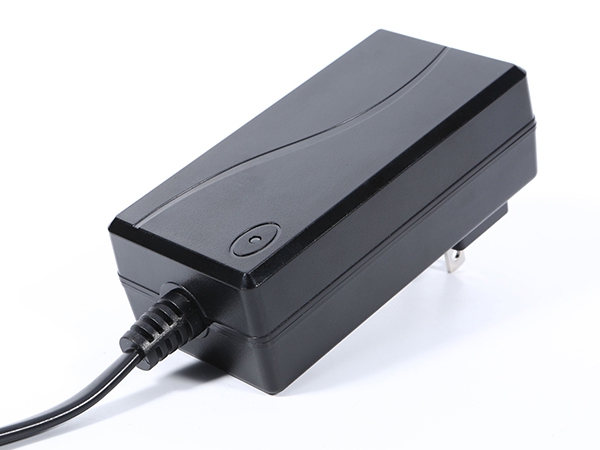

The YH-K290020-C is a powerful adapter designed for applications, such as home electronic equipment (e.g. electric recliners, massage chair, lifting desk) electric tools, security & protection, Medical Equipment, telecom&networking, office equipment, is easy to handle and provides the safest and cleanest DC power energy, and has a very robust construction thanks to the ultrasonic welded plastic housing.

The adapter YH-K290020-C comes with US electrical outlet plug compatible with the US Mains socket and a DC cord with the connector.

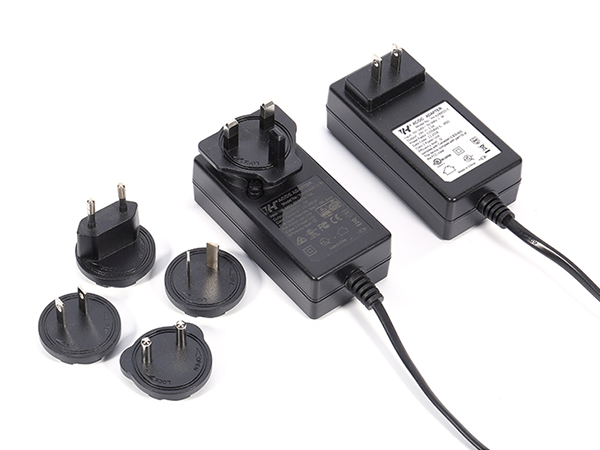

Note: The plugs compatible for the other countries or regions are customizable.

Model
Voltage
Current
Efficiency
Power
YH-KXXXYYY-C
XXX=120-350
YYY=015-040
Vdc
A
Min./%
Max.(W)
12
4
80
48
18
3
84
54
24
2
84
48
29
2
86
58
35
1.5
86
52.5
