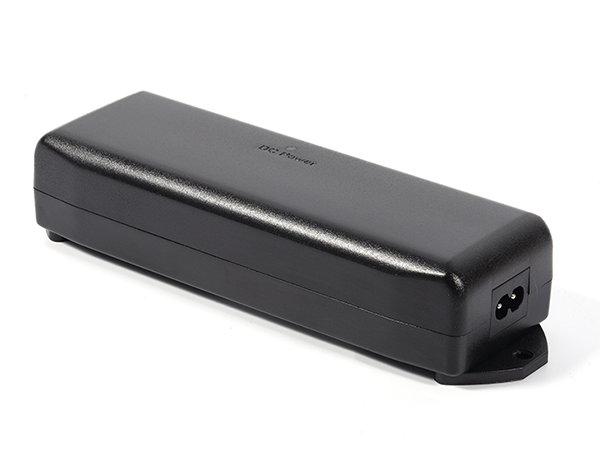

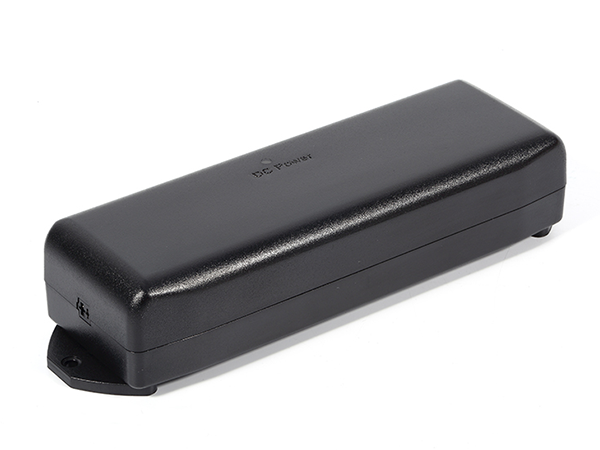

29V2A Power Supply / Adatper (Equipped with Backup Battery Box)

60W SMPS / AC-DC

100~240VAC 1.6A Max, 47~63Hz, 29VDC 2A YH-A290020-B


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
  0
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
  -20
…+85

Start Inrush Current:
80A/240V

Insulation Intensity
3750VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

60W SMPS
YH-A290020-B

The YH-A290020-B is a powerful adapter, equipped with 9V lithium battery housing, designed for applications, such as home electronic equipment , electric tools, security & protection, Medical Equipment, telecom&networking, office equipment, is easy to handle and provides the safest and cleanest DC power energy. In special cases such as power outages, you can still adjust the position of the recliner by assembling two 9V lithium batteries.

The adapter YH-A290020-B comes with a 2-prong socket for connecting the AC power cord and a DC connector.

Model
Voltage
Current
Efficiency
Power
YH-AXXXYYY-B
XXX=120-350
YYY=015-040
Vdc
A
Min./%
Max.(W)
12
4
80
48
18
3
84
54
24
2
84
48
29
2
86
58
35
1.5
86
52.5
