29V2A power supply control unit

60W SMPS CONTROL UNIT/ AC-DC

100~240VAC 1.6A Max, 47~63Hz, 29VDC 2A YH-A290020-E


Technical Paprameters:

Technical
Parameters
Environmental
Parameters

Environmental
Temperature:  25

Operating Temperature:
  0
…+40

Input Voltage
Range: 90-264Vac

Storage Temperature:
  -20
…+85

Start Inrush Current:
80A/240V

Insulation Intensity
3750VAC 1min inp.<->outp.

Regulation:
Line load5%

Insulation Resistance:
Pri.to sec.>50MOhm 500VDC

Ripple and Noise:
2% max.

Over Current Protection:
120%-200%, Auto reboot

Turn-on Delay
Time: 5S max.

Over Voltage Protection:
150%, Auto reboot

60W SMPS CONTROL UNIT
YH-A290020-E

The YH-A290020-E is a powerful adapter designed for applications, such as home electronic equipment (e.g. electric recliners, massage chair, lifting desk) electric tools, security & protection, Medical Equipment, telecom&networking, office equipment, is easy to handle and provides the safest and cleanest DC power energy.

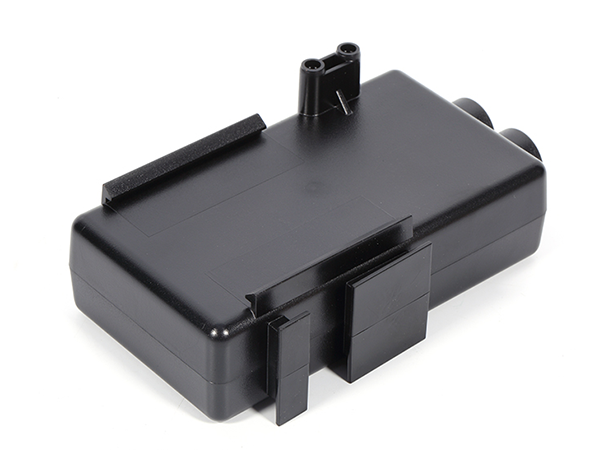

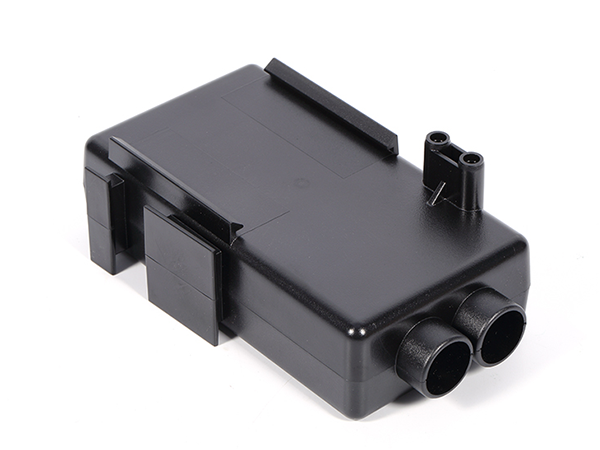

The adapter YH-A290020-E comes with a 2-prong socket for connecting the AC power cord. There are also two dedicated output sockets, one for driving and the other for controlling.

Model
Voltage
Current
Efficiency
Power
YH-AXXXYYY-E
XXX=120-350
YYY=015-040
Vdc
A
Min./%
Max.(W)
12
4
80
48
18
3
84
54
24
2
84
48
29
2
86
58
35
1.5
86
52.5
